Manufacturer Supply Ambient Air Vaporizers

Basic Info

Usage	Hydrogen, Nitrogen, Oxygen
Purpose	Gas Manufacturing
Parts	Gas Tank
Application Fields	New Energy
Noise Level	Low
Machine Size	Large
Condition	New
Certification	ISO, CE
Material	Aluminium Alloy
Heating Method	Air Heated
Weight	Actual Weight
Trademark	CBMTECH
Origin	Ningbo, China
HS Code	8413810090

Product Description

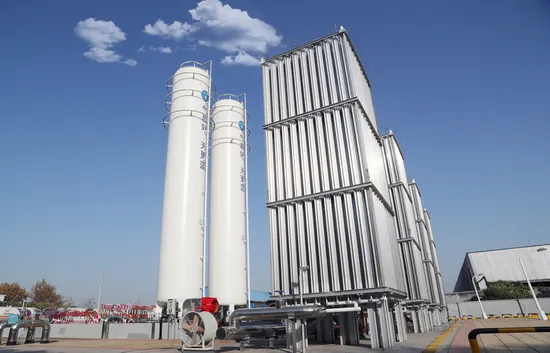

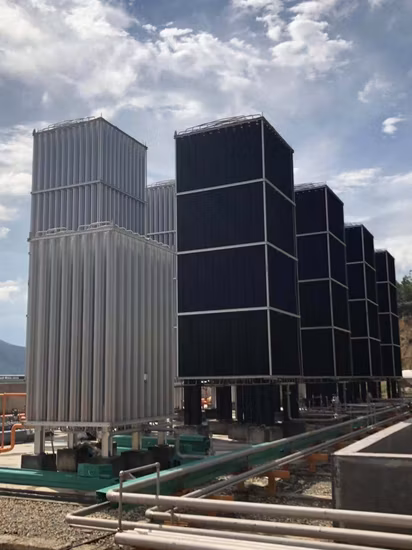

Ambient Air VaporizerWhen falling from 3-meter-high spot, hot water will be cooled down. This is because heat exchange occurs between the water and the air. Similarly, ambient air vaporizer makes use of the large temperature differences between the cryogenic liquid and the ambient air. The transfer efficiency is improved by increased fin numbers and expanded contact area with the air. So this cryogenic vaporizer achieves a rapid and complete vaporization.

Product Description of Ambient Air Vaporizer:Type: Vertical, three-row, five-stage, water-cooled cylinders without oil lubrication, water cooling, piston typeExhaust volume: 180 m 3 / h (inhalation conditions)Medium: dry oxygenSuction temperature:<40°CMaximum working pressure: 16.17 MPa (165kgf/cm2)Piston stroke: 180mmCooling water consumption: 6T/hrCompressor speed: 232r.pmMotor speed: 960 rpmMotor power: 55kwPower supply conditions: 380V (three phase) 50Hz

Ambient Air Vaporizer Specification

Model	Maximum evaporation (Nm3/h)	Maximum working pressure (Mpa)	Body material	Empty weight (kg)
QQ-50/25	50	2.45	5A02	100
QQ-100/25	100	2.45	5A02	185
QQ-150/25	150	2.45	5A02	245
QQ-180/25	180	2.45	5A02	330
QQ-200/25	200	2.45	5A02	350
QQ-350/25	350	2.45	5A02	560
QQ-500/25	500	2.45	5A02	610
QQ-1200/25	1200	2.45	5A02	2100
QQ-2000/25	2000	2.45	5A02	3220
QQ-4000/25	4000	2.45	5A02	5500

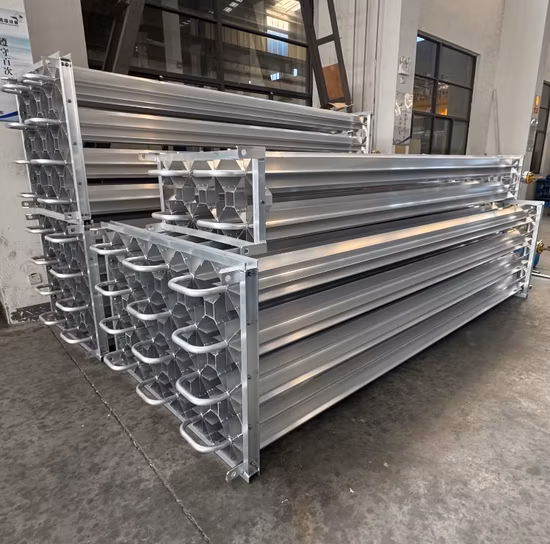

The Advantages of Ambient Air Vaporizer:-1).No energy consumption, no pollution, environmental protection;-2).It uses special aluminium material to exchange heat and high efficiency and lightweight design to keep a long service life;the special design of Φ160,Φ200 of large finned aluminium tube heat exchanger to increase the defrosting speed;The unique design of "bridge" type connection, it increases the load capacity and integral stiffness, and it effectively eliminates all parts of thermal stress generated by working;Aluminium heat exchanger tube has surface oxidation treatment.-3).Optimization of process design, the Pressure drop is reduced to the minimum, no drift phenomenon, ensures the flow control in a safe range.
